Computerized Underground Concrete Spraying Machine With Smoothly Reversing

Computerized Underground Concrete Spraying Machine With Smoothly Reversing

  • Computerized Underground Concrete Spraying Machine With Smoothly Reversing
Computerized Underground Concrete Spraying Machine With Smoothly Reversing
Product Details:
Place of Origin: HUNAN, CHINA
Brand Name: POTENTIAL
Certification: ISO9001:2008
Model Number: KC2515W
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: 1 unit in 1x40'FR
Delivery Time: 25-45 working days
Supply Ability: 300 units per year
Contact Now
Detailed Product Description
Power Of Working: Motor Power Of Traveling: Diesel
Operateion: Wireless Remote Control Outside Dimension(L×W×H)(mm): 7410x2200x3200
Concrete Cylinder Diameter(mm): 180 Hydraulic Cylinder Moving Distance(mm): 800
High Light:

Underground Concrete Spraying Machine

,

Computerized Concrete Spraying Machine

,

Concrete Spraying Machine Smoothly Reversing

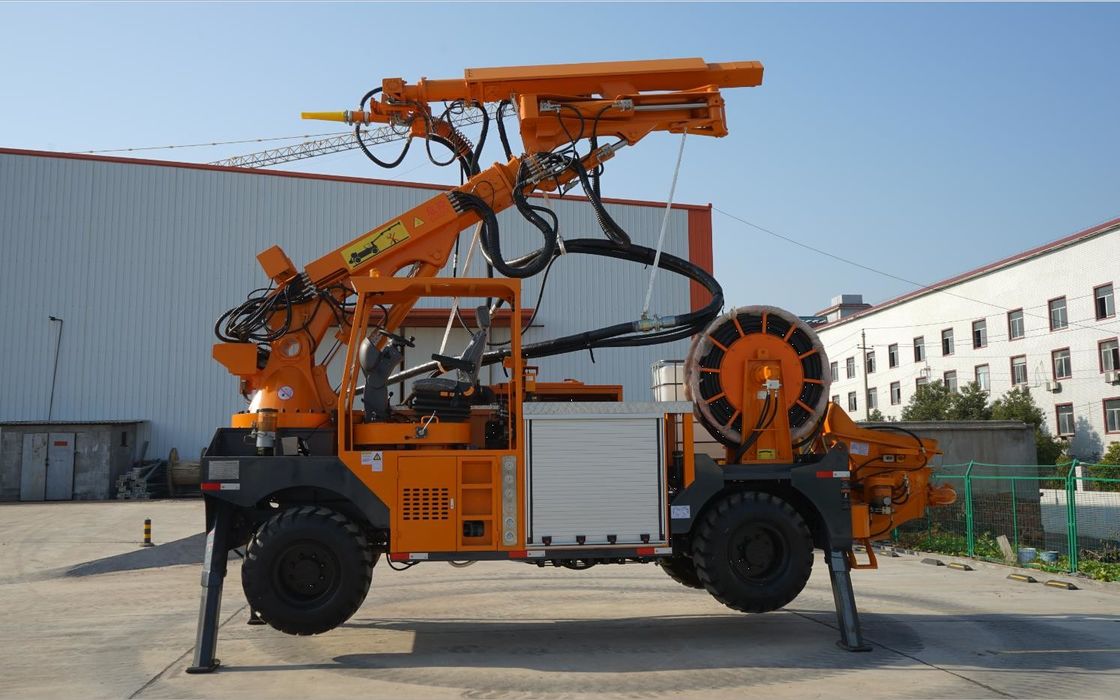

KC2515W Underground Concrete Sprayer, Wet Robotic Shotcrete Machine, wireless remote control



Applications

Widely used in concrete spraying projects of large and medium working sections, such as railway tunnel, road tunnel, culvert, diversion tunnel of hydropower station, subway and other underground projects.



Features

1, Three sections boom, the first and third boom are telescopic. Fully hydraulic control. Turning, tilting, stretching and solding, all movements could be done by shotcrete robot.

2, Shotcrete nozzle could rotate 360º, which minimizes the blind spot, depresses rebound rate and improves shotcreting quality.

3, Auto-parallel system makes it possible to keep the third boom parallel with working surface during operating main boom. It guarrantees a better control to the shotcrete angle and distance, and bring about better shotcreting result..

4, POTENTIAL made rigid chassis with floating front axle, internal combustion hydro-static transmission, 4-wheel drive, with functions of 4-wheel steering and crabbing. Lower Height and steeing radius, suitable for space limited and complex worksite.

5, All shotcreting movements could be done through wireless remote control. Maxmum protect the operaor, meanwhile offer a better operating.

6, Advanced and reliable electro-hydraulic proportional technology and PLC control, additive dosage could auto setting along with the concrete volume according to the initial set ratio. Meanwhile, a wide range of puping output 0-25 m³/h could be seaily achieved, which meets different requirements of pumping capacity.

7, Computerized man-machine communication module, could set working parameters and background system will monitor, record, memorize and display the data of working states in real time. Once it failed to ran normal, there will be an alarm and failure information display.

8, Double pump, double circuit hydraulic system, offers poweful and efficient pumping with smoothly reversing and minimum impact.



Specifications

No. Item KC2515W
1 Complete
machine
Weight(T) 15
Travelling speed(km/h) 0~20
Grade ability(°) 25
Approach/departure angle(°) 22/22
Ground clearance(mm) 305
Steering 4 wheel driving/steering/crab
Traveling mode wheels
Outside dimension(L×W×H)(mm) 7410x2200x3200
2 Pumping system Theoretical pump capacity (m³/h) 7~25
Filling height(mm) <1200
Max.aggregate size(mm) ≤16
Max. theory outlet pressure (MPa) 7.5
Pipe diameter(mm) 125
Concrete cylinder diameter(mm) 180
Concrete cylinder moving distance(mm) 800
Hydraulic cylinder(cylinder diameter/pole diameter)(mm) 100/60
Hydraulic cylinder moving distance(mm) 800
Hopper capacity(L) 400
Max.theoretical horizontal deliver distance(m) /
Max.theoretical vertical deliver distance(m) /
3 Motor Rated Power(kW/rpm) 45+22/1480
Rated voltage(V) three-phase/380(optional)
4 Engine Mode 4 cylinder liquid-cooled diesel engine
Rated power(kW/rpm) 82/2200
Diesel tank volumn (L) 120
5 Air compressor Mode /
Rated Power((kW) /(outsourcing)
Max.wind flow(m³/min ) >10 (required inlet flow)
Exhaust pressure(MPa) >0.5(required inlet pressure)
6 Shotcrete Boom Boom mode foldable + rotate + telescopic
Max.spary area Upward(m) 15
Forward(m) 13
Downward(m) 7
Width(m) 26
Min.spary area Upward(m) 4
Forward(m) 2~3
Downward(m) /
Width(m) 6
Main boom rotate angle(°) 270
Main boom tilt angle(up/down)(°) 60/23
Main boom telescopic length(mm) 1300
Telescopic boom rotate angle(°) (L/R)180/60
Telescopic boom tilt angle(up/down)(°) 30/62
Telescopic boom stretch length(mm) 1700
Nozzle rotate(°) 360
Nozzle swing (°) 240
Nozzle brush(°) 360 continuous
Nozzle diameter(°) 80
7 Additive
system
Flow rate(L/h) 60~720
Working pressure(MPa) 1.2
Tank volumn(L) 500
Suction length(m) 3m
Motor rated power(kW) 1.5
8 Cleaning System Flow rate(L/min) 14
Working pressure(MPa) 14
Motor rated power(kW) 4
9 Electric System Operate mode wireless romote control
Control mode PLC + touchscreen display
10 Cable Reel Cable length(m) 100
Power Source(V/Hz) 380/50(optional)
Electric current(A) 400



Computerized Underground Concrete Spraying Machine With Smoothly Reversing 0 Computerized Underground Concrete Spraying Machine With Smoothly Reversing 1
