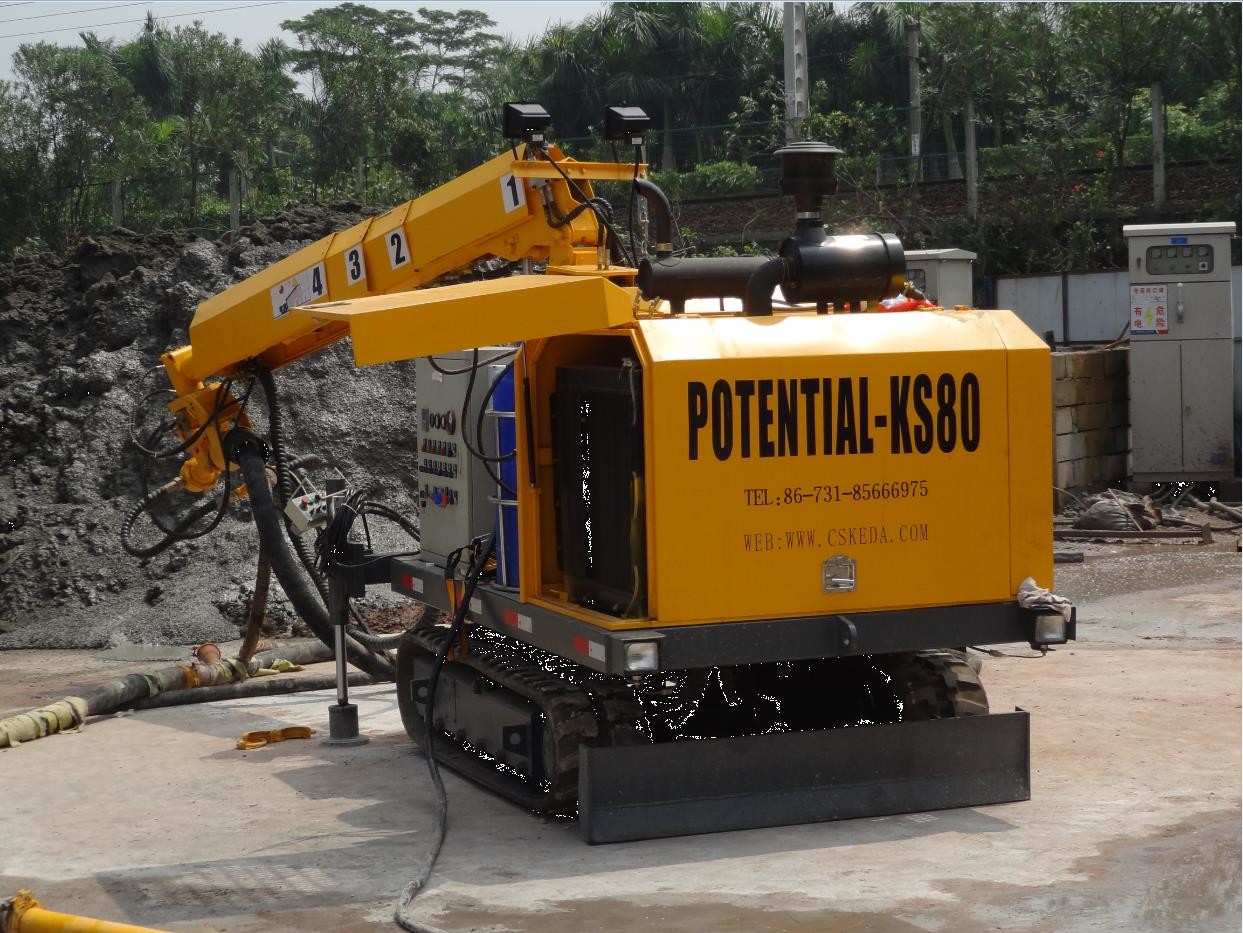

Split Type Underground Concrete Sprayer KS80 Output Max 25 Cubic Meter Per Hour

Split Type Underground Concrete Sprayer KS80 Output Max 25 Cubic Meter Per Hour

  • Split Type Underground Concrete Sprayer KS80 Output Max 25 Cubic Meter Per Hour
  • Split Type Underground Concrete Sprayer KS80 Output Max 25 Cubic Meter Per Hour
Split Type Underground Concrete Sprayer KS80 Output Max 25 Cubic Meter Per Hour
Product Details:
Place of Origin: HUNAN, CHINA
Brand Name: POTENTIAL
Certification: ISO9001:2008
Model Number: KS80
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: 1 set in 1x20'HQ
Delivery Time: 20-45 working days
Payment Terms: L/C, T/T
Supply Ability: 300 units per year
Contact Now
Detailed Product Description
Power: Motor And Diesel Engine Strcuture: Split Type
Output: 0-25m3 Per Hour Weight(T): 4.6+2.15
Traveling Mode: Crawler Flow Rate(L/h): 60~600
High Light:

concrete spraying equipment

,

robotic shotcrete machine

KS80 Underground Concete Sprayer, Concrete spraying manipulator, wet concrete sprayer



Applications

Widely used in concrete spraying projects of small working sections, such as railway tunnel, road tunnel, culvert, diversion tunnel of hydropower station, subway, mining and other underground projects.



Features

1, 4 telescopic boom, that makes it more suitable for multi-layer excavation in tunnel condition.

2, Electro-hydraulic power group provides shotcrete operation, max. output reach to 25 cubic meter per hour.

3, Diesel drive system provides force to traveling or arm's activity.

4, Crawer chassis, equipped with two unfording hydraulic outrigger leg to maintain the level of machine when it climbs slope.

5, Wireless remote control.



Specifications

No. Item KS80+KP25
1 Complete
machine
Weight(T) 4.6+2.15
Travelling speed(km/h) 2.2/4.4
Grade ability(°) 30
Approach/departure angle(°) 25/25
Ground clearance(mm) 205
Steering motor driving/pivot steering
Traveling mode crawler
Outside dimension(L×W×H)(mm) 3400×1600×2500+
3800×1500×1600
2 Motor Rated Power(kW/rpm) 7.5
Rated voltage(V) three-phase/380(optional)
3 Engine Mode 4 cylinder liquid-cooled diesel engine
Rated power(kW/rpm) 33/2200
Diesel tank volumn (L) 80
4 Air compressor Mode /
Rated Power((kW) /(outsourcing)
Max.wind flow(m³/min ) >10 (required inlet flow)
Exhaust pressure(MPa) >0.5(required inlet pressure)
5 Shotcrete Boom Boom mode rotate + telescopic
Max.spary area Upward(m) 8.5
Forward(m) 7
Downward(m) 3.3
Width(m) 14
Min.spary area Upward(m) 3
Forward(m) 2
Downward(m) 0
Width(m) 2
Main boom rotate angle(°) 270
Main boom tilt angle(up/down)(°) /
Main boom telescopic length(mm) /
Telescopic boom rotate angle(°) /
Telescopic boom tilt angle(up/down)(°) 60/43
Telescopic boom stretch length(mm) 1950
Nozzle rotate(°) 360
Nozzle swing (°) 240
Nozzle brush(°) 360continuous
Nozzle diameter(°) 80
6 Additive
system
Flow rate(L/h) 60~600
Working pressure(MPa) 1.2
Tank volumn(L) 200
Suction length(m) 3m
Motor rated power(kW) 1.5
7 Cleaning System Flow rate(L/min) 14
Working pressure(MPa) 14
Motor rated power(kW) 4
8 Electric System Operate mode wireless romote control
Control mode PLC + touchscreen display
9 Cable Reel Cable length(m) 80
Power Source(V/Hz) 380/50(optional)
Electric current(A) 400


Split Type Underground Concrete Sprayer KS80 Output Max 25 Cubic Meter Per Hour 0
