The Leading and Most Advanced Manufactuer of Robotic Shotcrete Machine and Concrete
Placing Boom in China
|Place of Origin:||HUNAN, CHINA|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||1 unit in 1x40'FR|
|Delivery Time:||25-45 working days|
|Supply Ability:||300 units per year|
|Air Compressor:||Onboard||Operation:||Wireless Remote Control|
|Power:||Electric Motor And Diesel Engine||Item:||KC3017|
concrete spraying equipment,
robotic shotcrete machine

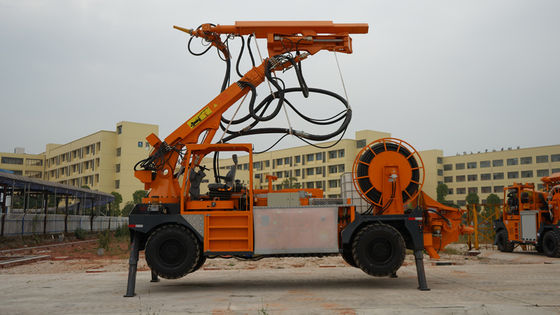

KC3017 Underground Concrete Sprayer, concrete spraying manipulator, onboard air compressor
Widely used in concrete spraying projects of large and medium working sections, full section or staged excavation, such as railway tunnel, road tunnel, culvert, diversion tunnel of hydropower station, subway and other underground projects.
1, Three sections boom, the first and third boom are telescopic. Fully hydraulic control. Turning, tilting, stretching and solding, all movements could be done by shotcrete robot.
2, Shotcrete nozzle could rotate 360º, which minimizes the blind spot, depresses rebound rate and improves shotcreting quality.
3, Auto-parallel system makes it possible to keep the third boom parallel with working surface during operating main boom. It guarrantees a better control to the shotcrete angle and distance, and bring about better shotcreting result..
4, Rigid chassis with floating front axle, internal combustion hydro-static transmission, 4-wheel drive, with functions of 4-wheel steering and crabbing.
5, Additive dosage could auto setting along with the concrete volume according to the initial set ratio. Meanwhile, a wide range of puping output 0-30 m³/h could be seaily achieved, which meets different requirements of pumping capacity.
6, Computerized man-machine communication module, could set working parameters and background system will monitor, record, memorize and display the data of working states in real time..
7, Wireless remote control
|Steering||4 wheel driving/steering/crab|
|2||Pumping system||Theoretical pump capacity (m³/h)||4～30|
|Max. theory outlet pressure (MPa)||7.5|
|Concrete cylinder diameter(mm)||180|
|Concrete cylinder moving distance(mm)||1000|
|Hydraulic cylinder(cylinder diameter/pole diameter)(mm)||100/60|
|Hydraulic cylinder moving distance(mm)||1000|
|Max.theoretical horizontal deliver distance(m)||/|
|Max.theoretical vertical deliver distance(m)||/|
|4||Engine||Mode||4 cylinder liquid-cooled diesel engine|
|Diesel tank volumn (L)||120|
|5||Air compressor||Mode||screw type|
|Max.wind flow(m³/min )||13.5|
|6||Shotcrete Boom||Boom mode||foldable + telescopic|
|Main boom rotate angle(°)||270|
|Main boom tilt angle(up/down)(°)||60/23|
|Main boom telescopic length(mm)||2000|
|Telescopic boom rotate angle(°)||(L/R)180/60|
|Telescopic boom tilt angle(up/down)(°)||30/62|
|Telescopic boom stretch length(mm)||2000|
|Nozzle swing (°)||240|
|Nozzle brush(°)||8x360 continuous|
|Motor rated power(kW)||1.5|
|8||Cleaning System||Flow rate(L/min)||14|
|Motor rated power(kW)||4|
|9||Electric System||Operate mode||wireless romote control|
|Control mode||PLC + touchscreen display|
|10||Cable Reel||Cable length(m)||100|
