The Leading and Most Advanced Manufactuer of Robotic Shotcrete Machine and Concrete
Placing Boom in China
 |
| Place of Origin: | HUNAN,CHINA |
| Brand Name: | POTENTIAL |
| Certification: | ISO9001:2008 |
| Model Number: | KGM12200 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 unit in 1x40'FR |
| Delivery Time: | 50 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 units per year |
| Quantity Of Boom: | 3 | Platform: | 2 |
|---|---|---|---|
| Pallet Payload: | 2000kg | Platform Payload: | 400kg |
| Operation: | Wireless Remote Control | Power: | Diesel And Motor |
| Items: | Parameters | Weight When Carring Anchor (kg): | 29600 |
| Dimension In Transportion (L X W X H) (m): | 9500 X 3500 X 3000 | Max. Gradeability (°): | 22 |
| High Light: | Robotic Arch Install Machine,3 Boom Arch Install Machine,Self Propelled Arch Install Machine |
||

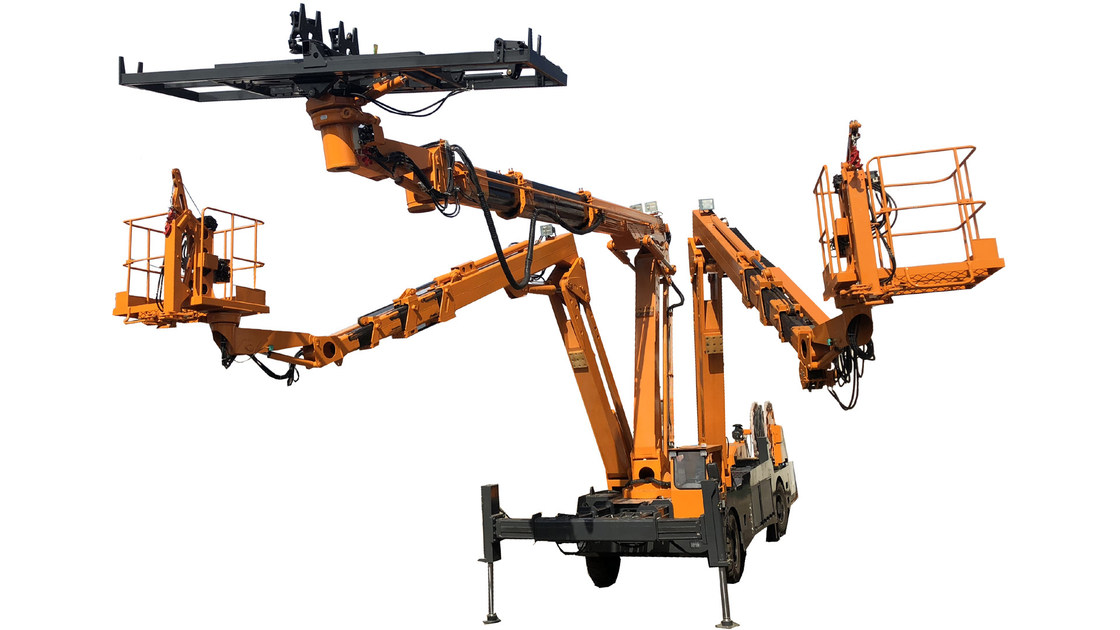

KGM12200 Arch install Machine, robotic steel support installing in tunnels
Application of arch install machine
The KGM12200 is a self-propelled 3-boom lifters for robotic steel support installing and man lifting in tunnels, motor and diesel engine. The lastest tunnel equipments researched by POTENTIAL is a creation in the world, we own fully inttectual property rights, including 12 patents of invention, more than 20 patents for utility models and 1 design patent.
Features
The working device on the boom is composed of grabbing manipulator, pallet, platform and small crane. Boom is controlled from wireless remote control and from the platform. The platform is specially designed for mechanized installation of steel supports and it is equipped with full rotation and automatic levelling system.
Specifications
| No | Items | Parameters |
| Whole unit | Weight | 29000kg |
| Travelling Speed | 0-18kg/h | |
| Grade Ability | 22° | |
| Gound Clearance | 400mm | |
| Traction/Steering | 4-Wheels driving/4-wheels steering | |
| Walking mode | Tyre | |
| Transpotation dimension | 11000×2800×4300mm | |
| Max.Operating Height | 12m | |
| Max.Operating Width | 20m | |
| Minimum Turning Radius | Inner 3m/Outer 7.5m | |
| Engine | Type | 6 cylinder liguid-cooled diesel engine |
| Rated Power | 153kw/2000rpm | |
| Motor | Rated Power | 90kw |
| Motor | Rated Power | 37kw/1480rpm |
| Boom Assembly | Max.Effective Working Length | 10.5m |
| Max.Extended Length of Main Boom | 13.5m | |
| Max. Extended Lenght of Auxillary Boom | 16m | |
| Pallet Payload | 2000kg | |
| Platform Payload | 400kg | |
| Boom Lifting Machanism Payload | 2000kg | |
| Platform Mini Crane Payload | 400kg | |
| Electrical System | Operating Mode | Wireless Remote Control |
| Control Mode | Controller | |
| Cable Reel | Power Supply | 380V/50HZ (optional) |
| Current | 240A |
Arch Rib Lifting and installation
