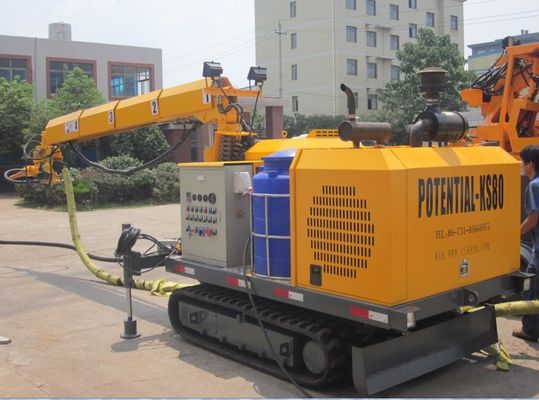

Robotic Concrete Spraying Machine KS80 KP25

Robotic Concrete Spraying Machine KS80 KP25

  • Robotic Concrete Spraying Machine KS80 KP25
  • Robotic Concrete Spraying Machine KS80 KP25
  • Robotic Concrete Spraying Machine KS80 KP25
Robotic Concrete Spraying Machine KS80 KP25
Product Details:
Place of Origin: HUNAN, CHINA
Certification: ISO9001:2008
Model Number: KS80
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: 1 set in 1x40'HQ
Delivery Time: 20-45 working days
Payment Terms: L/C, T/T
Supply Ability: 300 units per year
Contact Now
Detailed Product Description
Color: Yellow Strcuture: Split Type
Output: 0-25m3 Per Hour Item: KS80+KP25
Weight(T): 4.6+2.15 Traveling Mode: Crawler
High Light:

concrete shotcrete machine


concrete spraying equipment


Robotic Concrete Spraying Machine

KS80+KP25 Robotic Shotcrete Machine, wet-mix concrete spraying system



Widely used in concrete spraying projects of small working sections and staged excavation tunnel, such as railway tunnel, road tunnel, culvert, diversion tunnel of hydropower station, subway and other underground projects.



1, 4 telescopic boom, that makes it more suitable for multi-layer excavation in tunnel condition.

2, Electro-hydraulic power group provides shotcrete operation, max. output reach to 25 cubic meter per hour.

3, Diesel drive system provides force to traveling or arm's activity.

4, Crawer chassis, equipped with two unfording hydraulic outrigger leg to maintain the level of machine when it climbs slope.

5, Wireless remote control.



No. Item KS80+KP25
1 Complete
Weight(T) 4.6+2.15
Travelling speed(km/h) 2.2/4.4
Grade ability(°) 30
Approach/departure angle(°) 25/25
Ground clearance(mm) 205
Steering motor driving/pivot steering
Traveling mode crawler
Outside dimension(L×W×H)(mm) 3400×1600×2500+
2 Pumping system Theoretical pump capacity (m³/h) 7~25
Filling height(mm) <1200
Max.aggregate size(mm) ≤16
Max. theory outlet pressure (MPa) 7.5
Pipe diameter(mm) 100
Concrete cylinder diameter(mm) 140
Concrete cylinder moving distance(mm) 800
Hydraulic cylinder(cylinder diameter/pole diameter)(mm) 80/55
Hydraulic cylinder moving distance(mm) 800
Hopper capacity(L) 300
Max.theoretical horizontal deliver distance(m) 450
Max.theoretical vertical deliver distance(m) 160
3 Motor Rated Power(kW/rpm) 7.5+45/1480
Rated voltage(V) three-phase/380(optional)
4 Engine Mode 4 cylinder liquid-cooled diesel engine
Rated power(kW/rpm) 33/2200
Diesel tank volumn (L) 80
5 Air compressor Mode /
Rated Power((kW) /(outsourcing)
Max.wind flow(m³/min ) >10 (required inlet flow)
Exhaust pressure(MPa) >0.5(required inlet pressure)
6 Shotcrete Boom Boom mode rotate + telescopic
Max.spary area Upward(m) 8.5
Forward(m) 7
Downward(m) 3.3
Width(m) 14
Min.spary area Upward(m) 3
Forward(m) 2
Downward(m) 0
Width(m) 2
Main boom rotate angle(°) 270
Main boom tilt angle(up/down)(°) /
Main boom telescopic length(mm) /
Telescopic boom rotate angle(°) /
Telescopic boom tilt angle(up/down)(°) 60/43
Telescopic boom stretch length(mm) 1950
Nozzle rotate(°) 360
Nozzle swing (°) 240
Nozzle brush(°) 360continuous
Nozzle diameter(°) 80
7 Additive
Flow rate(L/h) 60~600
Working pressure(MPa) 1.2
Tank volumn(L) 200
Suction length(m) 3m
Motor rated power(kW) 1.5
8 Cleaning System Flow rate(L/min) 14
Working pressure(MPa) 14
Motor rated power(kW) 4
9 Electric System Operate mode wireless romote control
Control mode PLC + touchscreen display
10 Cable Reel Cable length(m) 80
Power Source(V/Hz) 380/50(optional)
Electric current(A) 400


Robotic Concrete Spraying Machine KS80 KP25 0
