KC2008J Wet Mix Shotcrete Machine Articulated Type

KC2008J Wet Mix Shotcrete Machine Articulated Type

  • KC2008J Wet Mix Shotcrete Machine Articulated Type
  • KC2008J Wet Mix Shotcrete Machine Articulated Type
KC2008J Wet Mix Shotcrete Machine Articulated Type
Product Details:
Place of Origin: HUNAN, CHINA
Brand Name: POTENTIAL
Certification: ISO9001:2008
Model Number: KC2008J
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: 1 unit in 1x40'HQ
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 300 units per year
Contact Now
Detailed Product Description
Operation: Wireless Remote Control Power: Motor And Diesel
Weight: Approx.11000kg Travelling Speed: 0~20km/h
Grade Ability: 20° Transportation Dimension: 7500x2000x2400(mm)
High Light:

concrete spraying machine

,

concrete shotcrete machine

,

Articulated Type Wet Mix Shotcrete Machine

KC2008J Robotic Shotcrete Machine, for underground and Mining, articulated type, wireless remote control



Applications

Widely used in concrete spraying projects of small working sections for underground and mining.



Features

1, POTENTIAL made rigid chasss with floating axle, wheels type.

2, Articulated steering, 4-wheels drive.
3, Full hydraulic control, 4 section telescopic boom, advanced nozzle structure.
4, Piston concrete pump, ensure the injection intensity and reduce the plugging probability, maintain cost low.
5, Diesel engine and motor dual power, and diesel engine power can be used for boom working in emergency state.
6, Onboard air compressor, equiped with high pressure cleaning machine.



KC2008J Wet Mix Shotcrete Machine Articulated Type 0    KC2008J Wet Mix Shotcrete Machine Articulated Type 1



Specifications

No

Itmes

Parameters

1

Whole unit

Weight

Approx.11000kg

Travelling Speed

0~20km/h

Grade Ability

20°

Gournd Clearance

385mm

Traction/Steering

4-wheels driving/Articulated steering

Waling mode

Wheels

Transportation dimension

7500x2000x2400(mm)

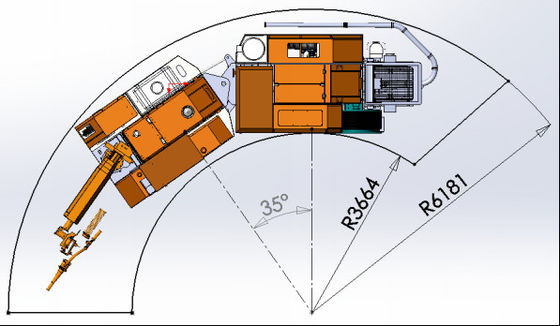

Turning Radius

Inner 3665mm / Ourter 6180mm

Height of feed

1250mm

2

Concrete Pump

Theo. Puming Capacity

20m³/h

Max. output Pressure

75bar

3

Engine

Type

4-cylinder liguid-cooled Diesel engine

Rated Power

82KW/2200rpm

4

Motor

Rated Power

37KW/1480rpm

5

Spray boom

Boom type

Telescopic

Shotcrete Distance

Upward

8.5m

Width

14m

Forward

7m

Nozzle Rotate

360°

Nozzle Inclination

240°

Nozzle Swing

8°x360°Continuous

Pipe Diameter

Φ80

6

Dosing Accelerator system

Flow Rate

40~1000L/h

Working Pressure

1.2 MPa

Tank Volume

300L

7

Air Compressor

Rated Power

45KW

Flow Rate

8m3/min

Pressure

7bar

8

Cleaner

Working Pressure

14MPa

9

Electrical System

Operating Mode

Wireless Remote Control

Control Mode

Controller + touch screen display

10

Cable Reel

Length

80m

Power Supply

380V/50HZ (optional)

Current

200A



KC2008J Wet Mix Shotcrete Machine Articulated Type 2             KC2008J Wet Mix Shotcrete Machine Articulated Type 3
