The Leading and Most Advanced Manufactuer of Robotic Shotcrete Machine and Concrete
Placing Boom in China
 |
| Place of Origin: | HUNAN, CHINA |
| Brand Name: | POTENTIAL |
| Certification: | CE, ISO9001:2008 |
| Model Number: | HG28B |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | negotiable |
| Packaging Details: | 1 unit in 2x40'HQ |
| Delivery Time: | 15-25 working days |
| Supply Ability: | 300 units per year |
| Boom Section: | 4 | Counterweight: | Without |
|---|---|---|---|
| Color: | Customized | Operation: | Wireless Remote Control And Cable Remote Control |
| Power: | 380V/50Hz | Working Temperature: | 0～48℃ |
| High Light: | concrete placement boom,hydraulic concrete placing boom |
||

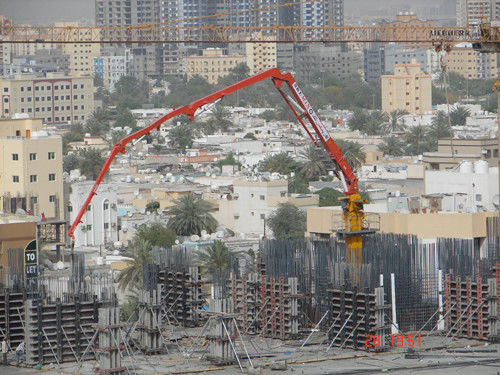

HG28B climbing Concrete Placing Boom, 28m boom length, 4 sections boom, without counterweight
Applications
■ Widely for horizontal concrete placing at roof of highrise buildings, by using which the overall working
efficiency of the project can be promoted.
■ Support internal climbing through floors and shafts on site with limited space.
Features
1, Modular design, mechanical and electrical integration control, folding boom, tube column, floor frame and shaft frame. Integration of advanced features and product diversification, to achieve a higher product portfolio, improve the applicability of the product.
2, Imported hydraulic and electrical components, adopt quality fast coupling for hydraulic pipelines, which is converted quickly, it can effectively solve the problem of oil leakage in the process of assemblying and dismantling, and avoid the pollution of the environment. Safety and reliability
3, 4 sections R type hydraulic boom, large circular arc, novel and beautiful appearance, compact structure, and the lightweight design of the boom, which reduced the weight of the whole machine..
4, Easy to transport and install.
5, Without counterweight design, no interference to other equipments on site.
Specifications
| Model | HG28B | |
| Boom Section | 4 | |
| Delivery pipe dimension (outside diameter × thickness) (mm × mm) | Φ133×4 | |
| Delivery hose dimension (inside diameter × length) (″×mm) | 5″×3000 | |
| Radius of placing boom (m) | 28 | |
| Stationary height (to the joint between the end of the boom and Swivel table) (m) | 22.9 | |
| Hydraulic foldable arm sections | 1st section | 8.1m |
| 2nd section | 6.7m | |
| 3rd section | 6.5m | |
| 4th section | 6.4m | |
| Boom articulation (°) | 1st section | －4.2～82.5 |
| 2nd section | 0°～180° | |
| 3rd section | 0°～180° | |
| 4th section | 0°～180° | |
| Slewing range (°) | 360 | |
| Power of motor (kW) | 11 | |
| Pressure of hydraulic system (MPa) | 28 | |
| Type of hydraulic oil | ESSO NUTO H46 | |
| Interval of climbing frame (m) | Climbing | 3.0～4.2 |
| Placing concrete | 6.0～8.4 | |
| Resting | ||
| Mode of operation | 1. cable remote control | |
| 2. radio remote control | ||
| Power | 380V/50Hz | |
| wind speed | Placing concrete | ≤60 km/h |
| Climbing | ≤28 km/h | |
| working temperature | 0～48℃ | |
