The Leading and Most Advanced Manufactuer of Robotic Shotcrete Machine and Concrete
Placing Boom in China
|Place of Origin:||HUNAN, CHINA|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||1 unit in 2x40'HQ|
|Delivery Time:||15-25 working days|
|Supply Ability:||300 units per year|
|Color:||Customized||Operation:||Wireless Remote Control And Cable Remote Control|
concrete pump placing boom,
hydraulic concrete placing boom

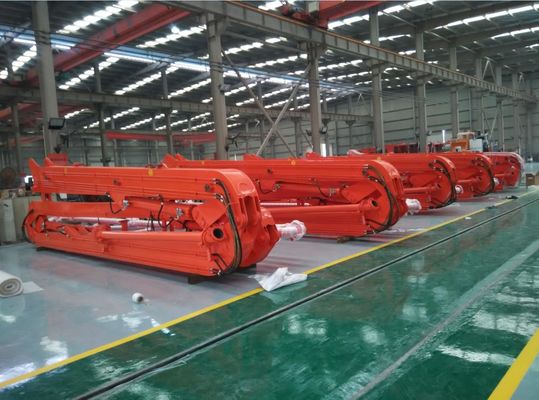

HG32Bb climbing Concrete Placing Boom, 4 sections boom, without counterweight, 20m column

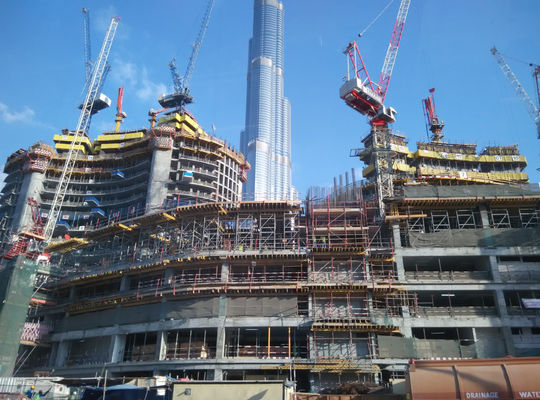

■ Widely for horizontal concrete placing at roof of highrise buildings, by using which the overall working
efficiency of the project can be promoted.
■ Support internal climbing through floors and shafts on site with limited space.
1, Modular design, mechanical and electrical integration control, folding boom, tube column, floor frame and shaft frame. Integration of advanced features and product diversification, to achieve a higher product portfolio, improve the applicability of the product.
2, Imported hydraulic and electrical components, adopt quality fast coupling for hydraulic pipelines, which is converted quickly, it can effectively solve the problem of oil leakage in the process of assemblying and dismantling, and avoid the pollution of the environment. Safety and reliability
3, 4 sections R type hydraulic boom, large circular arc, novel and beautiful appearance, compact structure, and the lightweight design of the boom, which reduced the weight of the whole machine..
4, Easy to transport and install.
5, Without counterweight design, no interference to other equipments on site.
|Delivery pipe dimension (outside diameter × thickness) (mm × mm)||Φ133×4|
|Delivery hose dimension (inside diameter × length) (″×mm)||5″×3000|
|Radius of placing boom (m)||32|
|Stationary height (to the joint between the end of the boom and Swivel table) (m)||22.9|
|Hydraulic foldable arm sections||1st section||9.1m|
|Boom articulation (°)||1st section||－4.2～82.5|
|Slewing range (°)||360|
|Power of motor (kW)||15|
|Pressure of hydraulic system (MPa)||28|
|Type of hydraulic oil||ESSO NUTO H46|
|Interval of climbing frame (m)||Climbing||3.0～4.2|
|Mode of operation||1. cable remote control|
|2. radio remote control|
|wind speed||Placing concrete||≤60 km/h|
