KC3019 Robotic Shotcrete Machine Diesel And Motor Power Screw Type Air Compressor

KC3019 Robotic Shotcrete Machine Diesel And Motor Power Screw Type Air Compressor

  • KC3019 Robotic Shotcrete Machine Diesel And Motor Power Screw Type Air Compressor
KC3019 Robotic Shotcrete Machine Diesel And Motor Power Screw Type Air Compressor
Product Details:
Place of Origin: HUNAN, CHINA
Brand Name: POTENTIAL
Certification: ISO9001:2008
Model Number: KC3019
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: 1 unit in 1x40'FR
Delivery Time: 25-45 working days
Supply Ability: 300 units per year
Contact Now
Detailed Product Description
Air Compressor: Onboard Operation: Wireless Remote Control
Power: Diesel And Motor Approach/departure Angle(°): 30/18
Air Compressor Mode: Screw Type Working Pressure(MPa): 1.2
High Light:

concrete shotcrete machine

,

concrete spraying equipment

,

Screw Type Robotic Shotcrete Machine

KC3019 Wet Robotic Shotcrete Machine, onboard air compressor.



Applications

Widely used in concrete spraying projects of large and medium working sections, such as railway tunnel, road tunnel, culvert, diversion tunnel of hydropower station, subway and other underground projects.



Features

1, Rigid chassis with floating front axle, internal combustion hydro-static transmission, 4-wheel drive, with functions of 4-wheel steering and crabbing.

2, Advanced and reliable electro-hydraulic proportional technology and PLC control.

3, Computerized man-machine communication module, could set working parameters and background system will monitor, record, memorize and display the data of working states in real time..

4, Wireless remote control

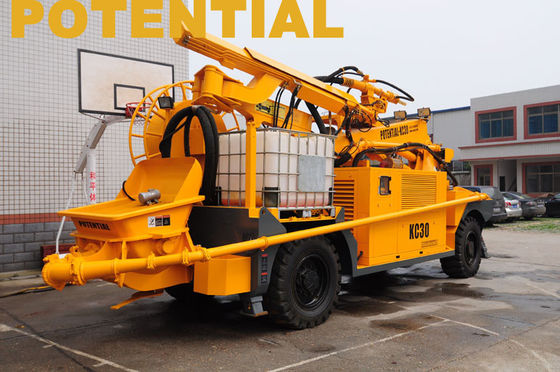

KC3019 Robotic Shotcrete Machine Diesel And Motor Power Screw Type Air Compressor 0

Specifications



No. Item KC3019
1 Complete
machine
Weight(T) 17
Travelling speed(km/h) 0~18
Grade ability(°) 25
Approach/departure angle(°) 30/18
Ground clearance(mm) 400
Steering 4 wheel driving/steering/crab
Traveling mode wheels
Outside dimension(L×W×H)(mm) 8265×2500×3200
2 Pumping system Theoretical pump capacity (m³/h) 4~30
Filling height(mm) <1200
Max.aggregate size(mm) ≤16
Max. theory outlet pressure (MPa) 7.5
Pipe diameter(mm) 125
Concrete cylinder diameter(mm) 180
Concrete cylinder moving distance(mm) 1000
Hydraulic cylinder(cylinder diameter/pole diameter)(mm) 100/60
Hydraulic cylinder moving distance(mm) 1000
Hopper capacity(L) 600
Max.theoretical horizontal deliver distance(m) /
Max.theoretical vertical deliver distance(m) /
3 Motor Rated Power(kW/rpm) 55/1480
Rated voltage(V) three-phase/380(optional)
4 Engine Mode 4 cylinder liquid-cooled diesel engine
Rated power(kW/rpm) 82/2200
Diesel tank volumn (L) 120
5 Air compressor Mode screw type
Rated Power((kW) 75
Max.wind flow(m³/min ) 13.5
Exhaust pressure(MPa) 0~0.7
6 Shotcrete Boom Boom mode foldable + telescopic
Max.spary area Upward(m) 19
Forward(m) 17
Downward(m) 9
Width(m) 34
Min.spary area Upward(m) 4
Forward(m) 2~3
Downward(m) 0
Width(m) 6
Main boom rotate angle(°) 270
Main boom tilt angle(up/down)(°) 60/23
Main boom telescopic length(mm) 2000
Telescopic boom rotate angle(°) (L/R)180/60
Telescopic boom tilt angle(up/down)(°) 30/62
Telescopic boom stretch length(mm) 2000
Nozzle rotate(°) 360
Nozzle swing (°) 240
Nozzle brush(°) 8x360 continuous
Nozzle diameter(°) 80
7 Additive
system
Flow rate(L/h) 0~1200
Working pressure(MPa) 1.2
Tank volumn(L) 1000
Suction length(m) 3m
Motor rated power(kW) 1.5
8 Cleaning System Flow rate(L/min) 14
Working pressure(MPa) 14
Motor rated power(kW) 4
9 Electric System Operate mode wireless romote control
Control mode PLC + touchscreen display
10 Cable Reel Cable length(m) 100
Power Source(V/Hz) 380/50(optional)
Electric current(A) 400



KC3019 Robotic Shotcrete Machine Diesel And Motor Power Screw Type Air Compressor 1
