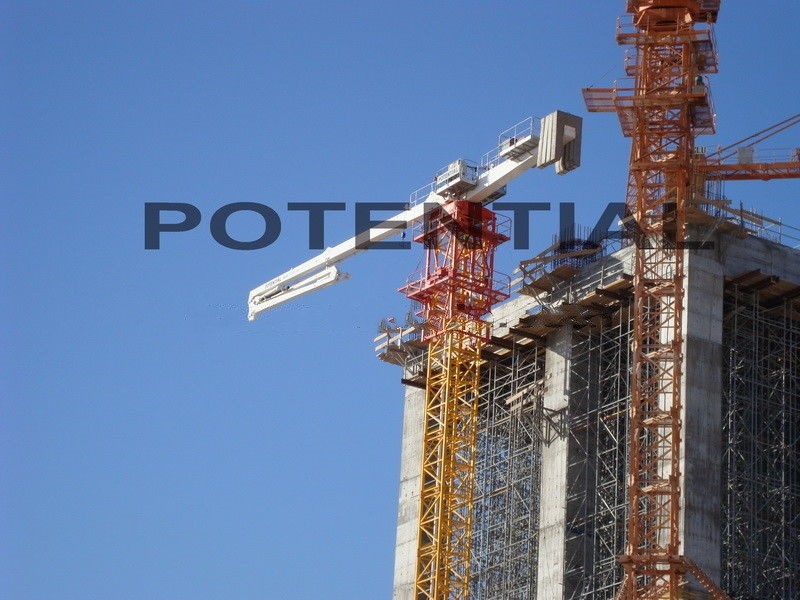

HG32 Walking Concrete Placing Boom Traveling On Rail Structure Customized Color

HG32 Walking Concrete Placing Boom Traveling On Rail Structure Customized Color

  • HG32 Walking Concrete Placing Boom Traveling On Rail Structure Customized Color
HG32 Walking Concrete Placing Boom Traveling On Rail Structure Customized Color
Product Details:
Place of Origin: HUNAN, CHINA
Brand Name: POTENTIAL
Certification: CE, ISO9001:2008
Model Number: HG32
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: 5x40'HQ
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 30 units per year
Contact Now
Detailed Product Description
Height: Customized Color: Customized
Structure: Traveling On Rail Boom Section: 3
Delivery Pipe Dimension: Φ133×4 Radius Of Placing Boom (m): 32
High Light:

placing boom concrete

,

high rise concrete pumping

HG32 Walking concrete placing boom, moving on rail, tower crane mast section, walking on chassis

Applications

  • Walking concrete placing boom is designed for special project.
  • It can travel on rails and grows up with the structure like how top-kit tower crane climbs.
  • Usually using on project such as light rails, railway, warehouse, etc.

Futures

1, Stepless speed control brought by proportional valve unit. Minimized impact force. Stable operation. Smooth starting and stopping. More accurate boom positioning.

2, Fast coupling connectors equipped at all detachable ends, automatically shut all outlets when assembling and disassembling.

3, Cable/radio remote control free operator from machine, get a better view of site, get a better control of boom and away from accidental injuries.

4, Hydraulci & electrical parts from Germany, Italy and Japan.



Specifications

Model HG32
Structure Traveling on rail
Boom Section 3
Delivery pipe dimension (outside diameter × thickness) (mm × mm) Φ133×4
Delivery hose dimension (inside diameter × length) (″×mm) 5″×3000
Radius of placing boom (m) 32
Stationary height (to the joint between the end of the boom and Swivel table) (m) 40 (customized)
Hydraulic foldable arm sections 1st section 14.5m
2nd section 9.2m
3rd section 8.0m
4th section /
Boom articulation (°) 1st section -4.2~82.5
2nd section 0°~180°
3rd section 0°~180°
4th section /
Slewing range (°) 360
Power of motor (Kw) 15
Pressure of hydraulic system (MPa) 28
Type of hydraulic oil ESSO NUTO H46
Mode of operation 1. cable remote control
2. radio remote control
Power 380V/50Hz
working temperature ﹣20~48℃
