The Leading and Most Advanced Manufactuer of Robotic Shotcrete Machine and Concrete
Placing Boom in China
Place of Origin: | HUNAN, CHINA |
Brand Name: | POTENTIAL |
Certification: | CE, ISO9001:2008 |
Model Number: | HG28B |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | negotiable |
Packaging Details: | 1 unit in 1x40'HQ +1x20'GP |
Delivery Time: | 15-25 working days |
Supply Ability: | 300 units per year |
Counterweight: | Without | Boom Section: | 4 |
---|---|---|---|
Height: | Customized | Delivery Pipe Dimension: | Φ133×4 |
Power Of Motor (kW): | 11 | Pressure Of Hydraulic System (MPa): | 28 |
High Light: | hydraulic stationary placing boom,concrete pump placing boom |

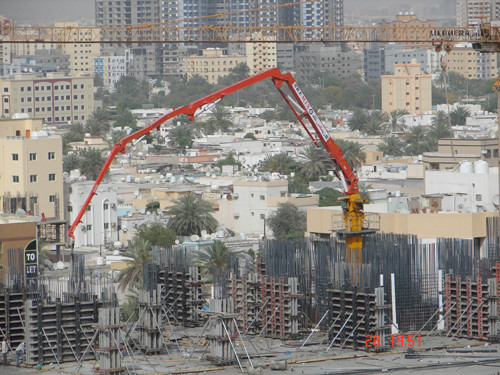

28 Stationary Concrete Placing Boom, 4 sections boom, customized height, wireless remote control
Applications
■ Mainly used for concrete placing of construction project, including civil construction, plant construction, bridge construction, beam yard, nuclear power plant, infrastructure, etc.
Features
■ The machine is fully hydraulic driven and can be slewed 360°.
■ The balance valve and solenoid directional valve are products of well-known brand.
■ The main electric components are from Omron or Schneider.
■ The modes of operation: Wireless remote control and cable remote control.
■ Column Design, easy to couple
Specifications
Model | HG28B | |
Boom Section | 4 | |
Delivery pipe dimension (outside diameter × thickness) (mm × mm) | Φ133×4 | |
Delivery hose dimension (inside diameter × length) (″×mm) | 5″×3000 | |
Radius of placing boom (m) | 27.7 | |
Stationary height (to the joint between the end of the boom and Swivel table) (m) | Customized | |
Hydraulic foldable arm sections | 1st section | 8.1m |
2nd section | 6.7m | |
3rd section | 6.5m | |
4th section | 6.4m | |
Boom articulation (°) | 1st section | -4.2~82.5 |
2nd section | 0°~180° | |
3rd section | 0°~180° | |
4th section | N/A | |
Slewing range (°) | 360 | |
Power of motor (kW) | 11 | |
Pressure of hydraulic system (MPa) | 28 | |
Type of hydraulic oil | ESSO NUTO H46 | |
Mode of operation | 1. cable remote control | |
2. radio remote control | ||
Power | 380V/50Hz | |
working temperature | 0~48℃ |
