The Leading and Most Advanced Manufactuer of Robotic Shotcrete Machine and Concrete
Placing Boom in China
 |
| Place of Origin: | HUNAN, CHINA |
| Brand Name: | POTENTIAL |
| Certification: | CE, ISO9001:2008 |
| Model Number: | HG32B |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | negotiable |
| Packaging Details: | 1 unit in 2x40'HQ |
| Delivery Time: | 15-25 working days |
| Supply Ability: | 300 units per year |
| Counterweight: | 2.3t | Boom Section: | 4 |
|---|---|---|---|
| Height: | Customized | Type Of Hydraulic Oil: | ESSO NUTO H46 |
| Power Of Motor (kW): | 15 | Slewing Range (°): | 360 |
| Highlight: | hydraulic stationary placing boom,concrete pump placing boom |
||

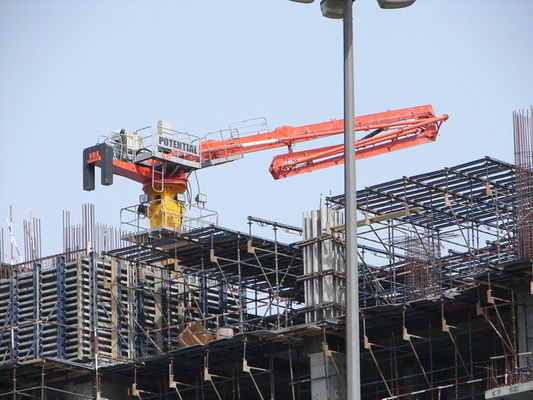

HG32B Stationary Concrete Placing Boom, 32m, 4 sections boom, customized height
Applications
■ Mainly used for concrete placing of construction project, including civil construction, plant construction, bridge construction, beam yard, nuclear power plant, infrastructure, etc.
Features
■ The machine is fully hydraulic driven and can be slewed 360°.
■ The balance valve and solenoid directional valve are products of well-known brand.
■ The main electric components are from Omron or Schneider.
■ The modes of operation: Wireless remote control and cable remote control.
■ Column Design, easy to couple
Specifications
| Model | HG32Bb | |
| Boom Section | 4 | |
| Delivery pipe dimension (outside diameter × thickness) (mm × mm) | Φ133×4 | |
| Delivery hose dimension (inside diameter × length) (″×mm) | 5″×3000 | |
| Radius of placing boom (m) | 31.7 | |
| Stationary height (to the joint between the end of the boom and Swivel table) (m) | Customized | |
| Hydraulic foldable arm sections | 1st section | 9.1m |
| 2nd section | 7.7m | |
| 3rd section | 7.5m | |
| 4th section | 7.4m | |
| Boom articulation (°) | 1st section | －4.2～82.5 |
| 2nd section | 0°～180° | |
| 3rd section | 0°～180° | |
| 4th section | N/A | |
| Slewing range (°) | 360 | |
| Power of motor (kW) | 15 | |
| Pressure of hydraulic system (MPa) | 28 | |
| Type of hydraulic oil | ESSO NUTO H46 | |
| Mode of operation | 1. cable remote control | |
| 2. radio remote control | ||
| Power | 380V/50Hz | |
| working temperature | 0～48℃ | |
