The Leading and Most Advanced Manufactuer of Robotic Shotcrete Machine and Concrete
Placing Boom in China
|Place of Origin:||HUNAN, CHINA|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||1 unit in 1x40'HQ +1x20'GP|
|Delivery Time:||15-25 working days|
|Supply Ability:||300 units per year|
|Delivery Pipe Dimension:||Φ133×4||Radius Of Placing Boom (m):||27.7|
hydraulic stationary placing boom,
concrete pump placing boom

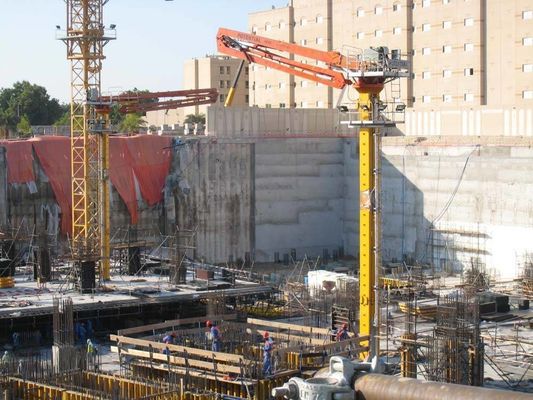

HG28 Stationary Concrete Placing Boom, 28m boom length, customized height, wireless remote control
■ Mainly used for concrete placing of construction project, including civil construction, plant construction, bridge construction, beam yard, nuclear power plant, infrastructure, etc.
■ The machine is fully hydraulic driven and can be slewed 360°.
■ The balance valve and solenoid directional valve are products of well-known brand.
■ The main electric components are from Omron or Schneider.
■ The modes of operation: Wireless remote control and cable remote control.
■ Column Design, easy to couple
|Delivery pipe dimension (outside diameter × thickness) (mm × mm)||Φ133×4|
|Delivery hose dimension (inside diameter × length) (″×mm)||5″×3000|
|Radius of placing boom (m)||27.7|
|Stationary height (to the joint between the end of the boom and Swivel table) (m)||Customized|
|Hydraulic foldable arm sections||1st section||10.5m|
|Boom articulation (°)||1st section||－4.2～82.5|
|Slewing range (°)||360|
|Power of motor (kW)||11|
|Pressure of hydraulic system (MPa)||28|
|Type of hydraulic oil||ESSO NUTO H46|
|Mode of operation||1. cable remote control|
|2. radio remote control|
Contact Person: Mr.fang
