|Place of Origin:||HUNAN, CHINA|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||1 unit in 1x40'HQ|
|Delivery Time:||25 working days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||300 units per year|
|Power:||Diesel||Output:||80 Cube Meter Per Hour|
|Color:||Customized||Filling Height On Supports (mm):||1400|
|Max Theory Delivery Distance:||300||Max Theory Concrete Output (m3/h):||87/53|
static concrete pump,
diesel concrete pump

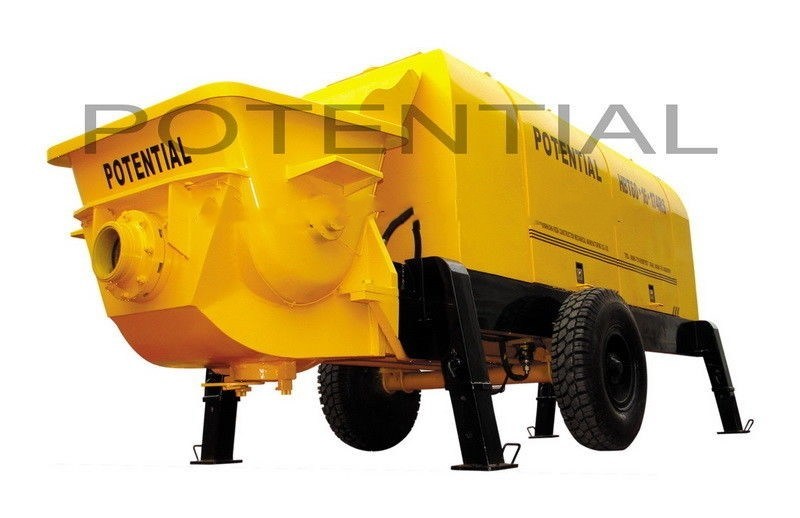

HBT80.13.130RS stationary concrete pump, static concrete pump with diesel power
■ Main Hydraulic Pumps are Rexroth products.
■ The high and low pressure conversion of the outlet pressure can achieve large discharge at low pressure and small discharge at high pressure.
■The open loop of the hydraulic system is air cooled to keep the oil temperature under general conditions so as to ensure the stability of the system.
■ The reversing control is electric-hydraulic type.
■ Main electric elements are Omron and Schneider
■ The counterforce on specially designed “S” valve is received by hopper wall to assure the service life of goggle plate and cutting ring.
|Max theory concrete output (m3/h)||67/44||87/53||84|
|concrete pumping pressure(High/Low) MPa||16/11||13/8||16|
|concrete cylinder diameter * stroke(mm)||Φ200*1600||Φ200*1600||Φ200*1800|
|Rated speed (rpm)||1400||2300||2300|
|Hopper capacity (L)||800||800||800|
|Filling height on supports (mm)||1400||1400||1450|
|Max. theory delivery distance
(horizontal height) (m)
|Max theory delivery distance
(vertical height) (m)
|Oil Tank (L)||500||500||500|
|Overall dim. (mm)||6400*2160*2800||6400*2160*2800||6400*2160*2800|
|Total weight (Kg)||6400||6400||6400|
