The Leading and Most Advanced Manufactuer of Robotic Shotcrete Machine and Concrete
Placing Boom in China
 |
| Place of Origin: | HUNAN, CHINA |
| Brand Name: | POTENTIAL |
| Certification: | ISO9001:2008 |
| Model Number: | KC2008J |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | negotiable |
| Packaging Details: | 1 unit in 1x40'HQ |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 300 units per year |
| Air Compressor: | Onboard | Power: | Motor And Diesel |
|---|---|---|---|
| Operation: | Wireless Remote Control | Nozzle Rotate: | 360° |
| Theo. Puming Capacity: | 20m³/h | Gournd Clearance: | 385mm |
| High Light: | concrete spraying machine,concrete pumping equipment |
||

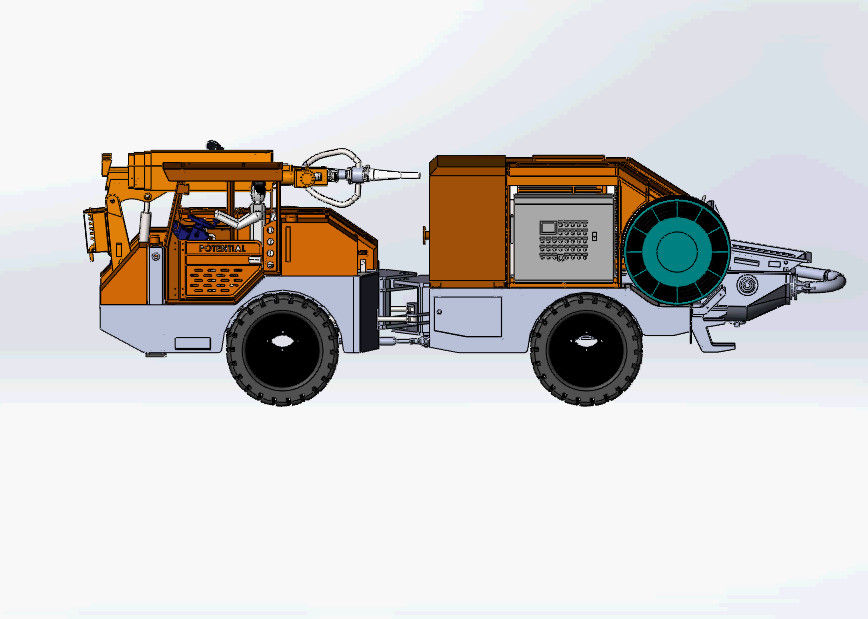

KC2008J Concrete Spraying Equipment, for underground and Mining, articulated type, wireless remote control
Applications
Widely used in concrete spraying projects of small working sections for underground and mining.
Features
1, POTENTIAL made rigid chasss with floating axle, wheels type.
2, Articulated steering, 4-wheels drive.
3, Full hydraulic control, 4 section telescopic boom, advanced nozzle structure.
4, Piston concrete pump, ensure the injection intensity and reduce the plugging probability, maintain cost low.
5, Diesel engine and motor dual power, and diesel engine power can be used for boom working in emergency state.
6, Onboard air compressor, equiped with high pressure cleaning machine.
Specifications
|
No |
Itmes |
Parameters |
||
|
1 |
Whole unit |
Weight |
Approx.11000kg |
|
|
Travelling Speed |
0～20km/h |
|||
|
Grade Ability |
20° |
|||
|
Gournd Clearance |
385mm |
|||
|
Traction/Steering |
4-wheels driving/Articulated steering |
|||
|
Waling mode |
Wheels |
|||
|
Transportation dimension |
7500x2000x2400(mm) |
|||
|
Turning Radius |
Inner 3665mm / Ourter 6180mm |
|||
|
Height of feed |
1250mm |
|||
|
2 |
Concrete Pump |
Theo. Puming Capacity |
20m³/h |
|
|
Max. output Pressure |
75bar |
|||
|
3 |
Engine |
Type |
4-cylinder liguid-cooled Diesel engine |
|
|
Rated Power |
82KW/2200rpm |
|||
|
4 |
Motor |
Rated Power |
37KW/1480rpm |
|
|
5 |
Spray boom |
Boom type |
Telescopic |
|
|
Shotcrete Distance |
Upward |
8.5m |
||
|
Width |
14m |
|||
|
Forward |
7m |
|||
|
Nozzle Rotate |
360° |
|||
|
Nozzle Inclination |
240° |
|||
|
Nozzle Swing |
8°x360°Continuous |
|||
|
Pipe Diameter |
Φ80 |
|||
|
6 |
Dosing Accelerator system |
Flow Rate |
40～1000L/h |
|
|
Working Pressure |
1.2 MPa |
|||
|
Tank Volume |
300L |
|||
|
7 |
Air Compressor |
Rated Power |
45KW |
|
|
Flow Rate |
8m3/min |
|||
|
Pressure |
7bar |
|||
|
8 |
Cleaner |
Working Pressure |
14MPa |
|
|
9 |
Electrical System |
Operating Mode |
Wireless Remote Control |
|
|
Control Mode |
Controller + touch screen display |
|||
|
10 |
Cable Reel |
Length |
80m |
|
|
Power Supply |
380V/50HZ (optional) |
|||
|
Current |
200A |
|||
