Durable Spider Concrete Placing Boom HG21 22MPa Hydraulic System Pressure

Durable Spider Concrete Placing Boom HG21 22MPa Hydraulic System Pressure

  • Durable Spider Concrete Placing Boom HG21 22MPa Hydraulic System Pressure
Durable Spider Concrete Placing Boom HG21 22MPa Hydraulic System Pressure
Product Details:
Place of Origin: HUNAN, CHINA
Brand Name: POTENTIAL
Certification: CE, ISO9001:2008
Model Number: HG21
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: 1 unit in 1x40'HQ
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T
Supply Ability: 300 units per year
Contact Now
Detailed Product Description
Slewing Range (°): 360 Hydraulic Boom: Yes
Operation: Remote Control Color: Customized
Power Of Motor (kW): 5.5 Boom Section: 3
High Light:

spider concrete pump placing boom

,

spider placing boom

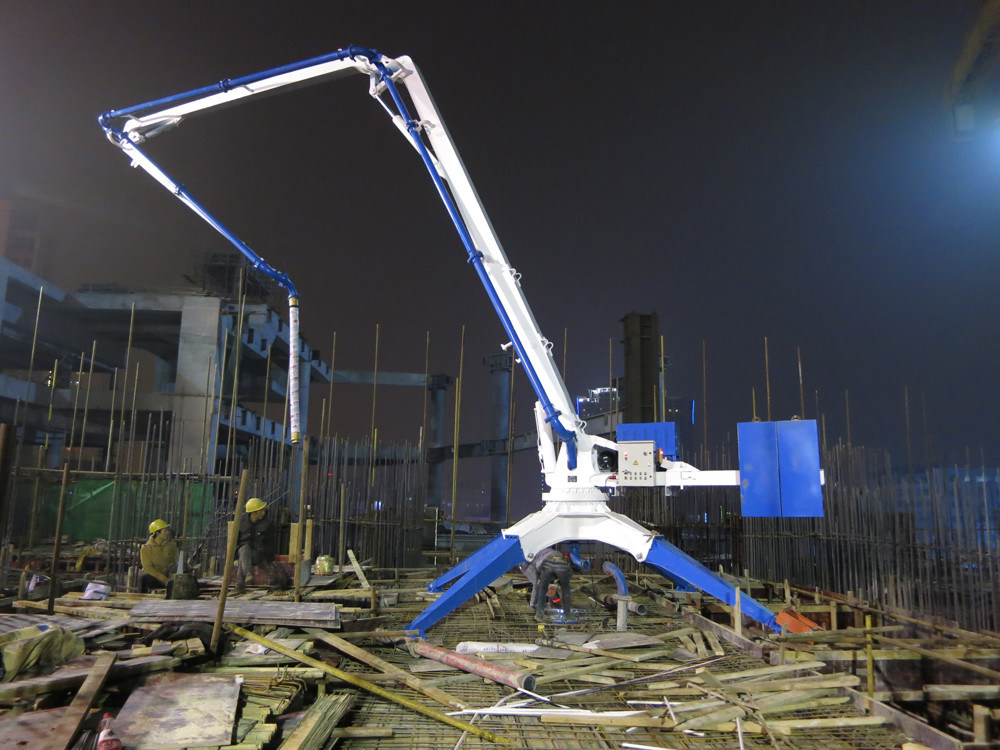

HG21 spider concrete placing boom, 21m boom length, mobile on slabs by tower crane on site



Advanced full hydraulic drive system

The hydraulic system of HG series mobile concrete placing boom can realize 360° slewing, the balance valve and solenoid directional control valve are relatively imported from

Italian Oil control and Germany Rexroth.

Reliable electrical system

Main components of HG series concrete placing boom are imported from world famous companies such as France Schneider.

Cable & wired remote control.







Specifications

Model HG21
Boom Section 3
Delivery pipe dimension (outside diameter × thickness) (mm × mm) Φ133×4
Delivery hose dimension (inside diameter × length) (″×mm) 5″×3000
Radius of placing boom (m) 21
Stationary height (to the joint between the end of the boom and Swivel table) (m) 3
Hydraulic foldable arm sections 1st section 7.95m
2nd section 6.95m
3rd section 6.1m
4th section N/A
Boom articulation (°) 1st section -1~87
2nd section 0°~176°
3rd section 0°~180°
4th section N/A
Slewing range (°) 360
Power of motor (kW) 5.5
Pressure of hydraulic system (MPa) 22
Type of hydraulic oil ESSO NUTO H46
Interval of climbing frame (m) Climbing N/A
Placing concrete N/A
Resting N/A
Mode of operation 1. cable remote control
2. radio remote control
Power 380V/50Hz
Weight Without counterweight 5020kgs
Countweight 2x1600kgs
Working temperature ﹣20~48℃
